PLANT EQUIPMENT

Polyethylene Terephthalate(PET)
Bottle Recycling System

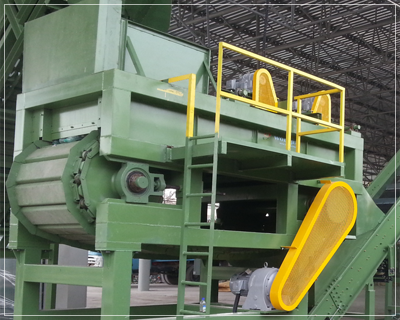

BALE BREAKER

A machine that breaks up the waste PET mass, which has been compressed and injected, by rotating the link chain.

MODEL POWER SIZE E/C HEATER CAPACITY h/r Rotation speed
WJ-B30 30KW(40HP) W2750×L5075×H4050 8.5TON 5.75TON-6TON 0-8 RPM
  Can be designed and manufactured based on the buyer's order or equipment.

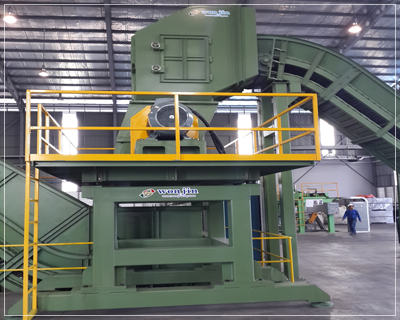

LABEL ELIMINATOR

Equipment to remove each trademark attached to PET BOTTLE.

MODEL POWER SIZE Machine weight CAPACITY H/r PIN
WJ-L30 30KW(40HP) W2000×L3680×H5380 본체 4.5TON 5.75TON-6TON Hrc64-65
  Can be designed and manufactured based on the buyer's order or equipment.

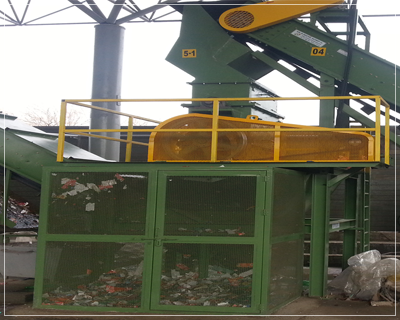

IMPACT PET CRUSHER

This machine uses a powerful force, is used for the purpose of crushing, grinding.

MODEL MOTOR(HP) SIZE(W×L×H) Throughput
(compressed PET)
Machine weight Noise
I-CR-40 40HP(30kw) 1550×1726×2146 600-700kg M/C: 3TON
I-CR-100 100HP(75kw) 3065×3100×4340 1-1.2TON M/C: 7.5TON
I-CR-200 200HP(150kw) 3100×3860×4340 2-2.5TON M/C: 9.5TON under 85db
50HP-300HP Can be designed and manufactured based on the buyer's order or equipment.

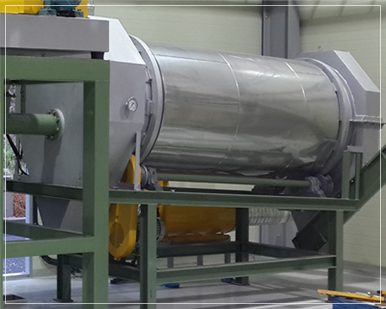

SPIN DRYER

It is a machine to dry the moisture of washed flakes.

MODEL Drum drive power Input screw power WEIGHT CAPACITY H/r Electric heater
WJ-FD-2200 3.7KW(5HP) 2.2KW(3HP) 3.5TON 2.2TON-2.7TON 93KW
OPTION Can be designed and manufactured based on the buyer's order or equipment.

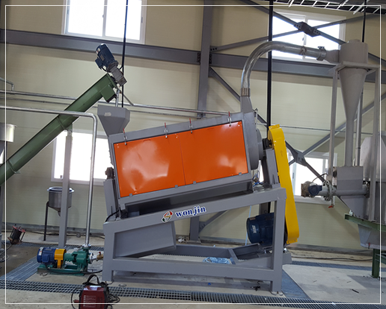

ROTARY KILN

It is a machine to dry the moisture of washed flakes.

MODEL Drum drive power Input screw power WEIGHT CAPACITY H/r Electric heater
WJ-FD-2200 3.7KW(5HP) 2.2KW(3HP) 3.5TON 2.2TON-2.7TON 93KW
OPTION Can be designed and manufactured based on the buyer's order or equipment.

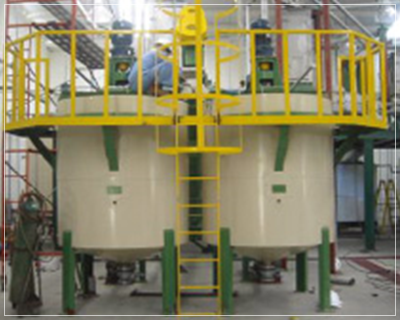

HOT WASHING BATH

2개-1set POWER SIZE WEIGHT(WATER-FULL) CAPACITY H/r Washing time
WJ-hwt-2200 3HP × 3EA Ø1900 × 1950L 1EA-3.5ton(8.5ton) 2.2-2.7ton 10minutes
  Can be designed and manufactured based on the buyer's order or equipment.

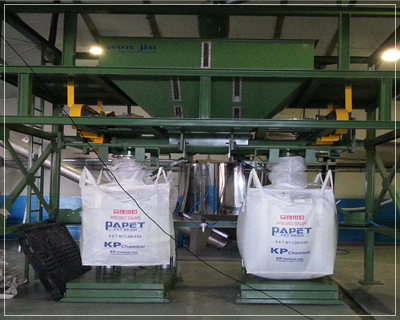

AUTOMATIC WEIGHTING SYSTEM

Equipment that automatically weighs and ships finished recycled materials
